Modomics - A Database of RNA Modifications

The molecule is shown in a ball-and-stick representation with the following colors for atoms :
Hydrogen (H): white Carbon (C): gray Oxygen (O): red Phosphorus (P): orange Nitrogen (N): blue Selenium (Se): gold Sulfur (S): yellow

Summary

Full name5-carboxymethylaminomethyl-2'-O-methyluridine
IUPAC name2-[[1-[(2R,3R,4R,5R)-4-hydroxy-5-(hydroxymethyl)-3-methoxyoxolan-2-yl]-2,4-dioxopyrimidin-5-yl]methylamino]acetic acid
Short namecmnm5Um
MODOMICS code new2000009051U
MODOMICS code051U
Synonyms
110419-13-1
2-[[1-[(2R,3R,4R,5R)-4-hydroxy-5-(hydroxymethyl)-3-methoxyoxolan-2-yl]-2,4-dioxopyrimidin-5-yl]methylamino]acetic acid
2'-O-Methyl-5-(carboxymethylaminomethyl)uridine
5-Carboxymethylaminomethyl- 2'-O-methyluridine
5-carboxymethylaminomethyl-2'-o-methyluridine
SCHEMBL1275125

Nature of the modified residueNatural
RNAMods code)
Residue unique ID23
Found in RNAYes
Related nucleotides392
Enzymes TrmL (Escherichia coli)
MnmE (Escherichia coli)
MnmE (Chlorobium tepidum)
MnmE (Nostoc sp.)
MnmE (Thermotoga maritima)
MnmG (Escherichia coli)
MnmG (Chlorobium tepidum)
MnmG (Aquifex aeolicus)
Found in phylogenyEubacteria
Found naturally in RNA typestRNA

Chemical information

Sum formulaC13H19N3O8
Type of moietynucleoside
Degeneracynot applicable
SMILESCO[C@H]1[C@H]([n]2cc(CNCC(O)=O)c(=O)[nH]c2=O)O[C@H](CO)[C@H]1O
logP-2.6327
TPSA163.11
Number of atoms24
Number of Hydrogen Bond Acceptors 1 (HBA1)9
Number of Hydrogen Bond Acceptors 2 (HBA2)10
Number of Hydrogen Bond Donors (HBD)5
PDB no exac match , link to the most similar ligand 38T
HMDB (Human Metabolome Database) no exact match, link to the most similar ligand None
InChIInChI=1S/C13H19N3O8/c1-23-10-9(20)7(5-17)24-12(10)16-4-6(2-14-3-8(18)19)11(21)15-13(16)22/h4,7,9-10,12,14,17,20H,2-3,5H2,1H3,(H,18,19)(H,15,21,22)/t7-,9-,10-,12-/m1/s1
InChIKeySFFCQAIBJUCFJK-UGKPPGOTSA-N
Search the molecule in external databases ChEMBL  ChemAgora  ChEBI  PubChem Compound Database  Ligand Expo  ChemSpider  WIPO
PubChem CID
PubChem SIDs

* Chemical properties calculated with Open Babel - O'Boyle et al. Open Babel: An open chemical toolbox. J Cheminform 3, 33 (2011) (link)


Download Structures

2D   .png .mol .mol2 .sdf .pdb .smi
3D   .mol .mol2 .sdf .pdb

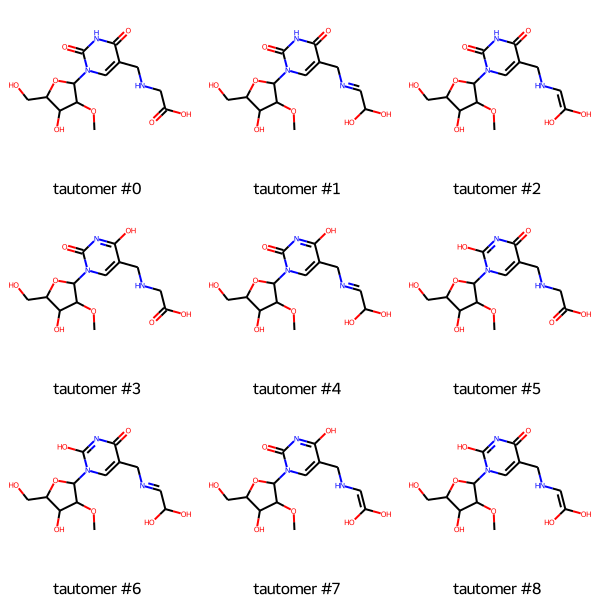

Tautomers

Tautomers SMILES
COC1C(n2cc(CNCC(=O)O)c(=O)[nH]c2=O)OC(CO)C1O tautomer #0
COC1C(n2cc(CN=CC(O)O)c(=O)[nH]c2=O)OC(CO)C1O tautomer #1
COC1C(n2cc(CNC=C(O)O)c(=O)[nH]c2=O)OC(CO)C1O tautomer #2
COC1C(n2cc(CNCC(=O)O)c(O)nc2=O)OC(CO)C1O tautomer #3
COC1C(n2cc(CN=CC(O)O)c(O)nc2=O)OC(CO)C1O tautomer #4
COC1C(n2cc(CNCC(=O)O)c(=O)nc2O)OC(CO)C1O tautomer #5
COC1C(n2cc(CN=CC(O)O)c(=O)nc2O)OC(CO)C1O tautomer #6
COC1C(n2cc(CNC=C(O)O)c(O)nc2=O)OC(CO)C1O tautomer #7
COC1C(n2cc(CNC=C(O)O)c(=O)nc2O)OC(CO)C1O tautomer #8

Tautomer image Show Image

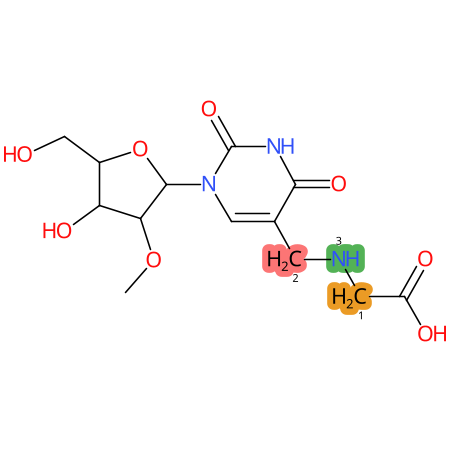

Predicted CYP Metabolic Sites

CYP3A4 CYP2D6 CYP2C9
cmnm5Um cmnm5Um cmnm5Um

* CYP Metabolic sites predicted with SMARTCyp. SMARTCyp is a method for prediction of which sites in a molecule that are most liable to metabolism by Cytochrome P450. It has been shown to be applicable to metabolism by the isoforms 1A2, 2A6, 2B6, 2C8, 2C19, 2E1, and 3A4 (CYP3A4), and specific models for the isoform 2C9 (CYP2C9) and isoform 2D6 (CYP2D6). CYP3A4, CYP2D6, and CYP2C9 are the three of the most important enzymes in drug metabolism since they are involved in the metabolism of more than half of the drugs used today. The three top-ranked atoms are highlighted. See: SmartCYP and SmartCYP - background; Patrik Rydberg, David E. Gloriam, Lars Olsen, The SMARTCyp cytochrome P450 metabolism prediction server, Bioinformatics, Volume 26, Issue 23, 1 December 2010, Pages 2988–2989 (link)


LC-MS Information

Monoisotopic mass345.1172
Average mass345.305
[M+H]+346.125
Product ions271/221/111/129/253/200
Normalized LC elution time * not available
LC elution order/characteristics not available

* normalized to guanosine (G), measured with a RP C-18 column with acetonitrile/ammonium acetate as mobile phase.

Chemical groups contained

TypeSubtype
aminoacyl groupglycyl
methyl groupmethyl at O2
othersecondary amine

Reactions producing 5-carboxymethylaminomethyl-2'-O-methyluridine

Name
cmnm5U:cmnm5Um
Um:cmnm5Um

Last modification of this entry: Sept. 22, 2023
