Modomics - A Database of RNA Modifications

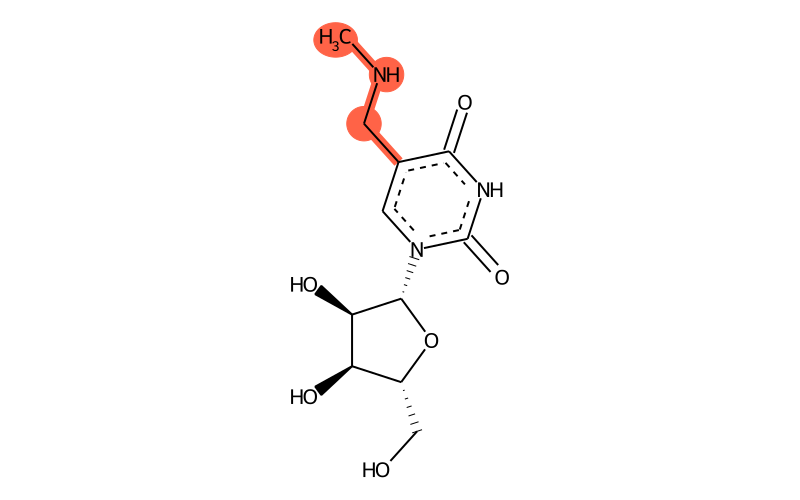

The molecule is shown in a ball-and-stick representation with the following colors for atoms :
Hydrogen (H): white Carbon (C): gray Oxygen (O): red Phosphorus (P): orange Nitrogen (N): blue Selenium (Se): gold Sulfur (S): yellow

Summary

Full name5-methylaminomethyluridine
IUPAC name1-[(2R,3R,4S,5R)-3,4-dihydroxy-5-(hydroxymethyl)oxolan-2-yl]-5-(methylaminomethyl)pyrimidine-2,4-dione
Short namemnm5U
MODOMICS code new2000000511U
MODOMICS code511U
Synonyms
5-methylaminomethyluridine
5-[(methylamino)methyl]uridine
5-(Methylaminomethyl)uridine
72667-55-1
CHEBI:20605
CTK2H2219
DTXSID60559468
mam(5)u
Q27109321
SCHEMBL41006
Uridine, 5-[(methylamino)methyl]-
ZINC34283534
Nature of the modified residueNatural
RNAMods code{
Residue unique ID129
Found in RNAYes
Related nucleotides297
Enzymes MnmCD (Escherichia coli)
MnmD (Aquifex aeolicus)
Found in phylogenyEubacteria, Eukaryota
Found naturally in RNA typestRNA

Chemical information

Sum formulaC11H17N3O6
Type of moietynucleoside
Degeneracynot applicable
SMILESCNCc1c(=O)[nH]c(=O)[n]([C@H]2[C@H](O)[C@H](O)[C@@H](CO)O2)c1
logP-2.7416
TPSA136.81
Number of atoms20
Number of Hydrogen Bond Acceptors 1 (HBA1)7
Number of Hydrogen Bond Acceptors 2 (HBA2)8
Number of Hydrogen Bond Donors (HBD)5
PDB no exac match , link to the most similar ligand 38T
HMDB (Human Metabolome Database) no exact match, link to the most similar ligand None
InChIInChI=1S/C11H17N3O6/c1-12-2-5-3-14(11(19)13-9(5)18)10-8(17)7(16)6(4-15)20-10/h3,6-8,10,12,15-17H,2,4H2,1H3,(H,13,18,19)/t6-,7-,8-,10-/m1/s1
InChIKeyZXQHKBUIXRFZBV-FDDDBJFASA-N
Search the molecule in external databases ChEMBL  ChemAgora  ChEBI  PubChem Compound Database  Ligand Expo  ChemSpider  WIPO
PubChem CID
PubChem SIDs

* Chemical properties calculated with Open Babel - O'Boyle et al. Open Babel: An open chemical toolbox. J Cheminform 3, 33 (2011) (link)


Download Structures

2D   .png .mol .mol2 .sdf .pdb .smi
3D   .mol .mol2 .sdf .pdb

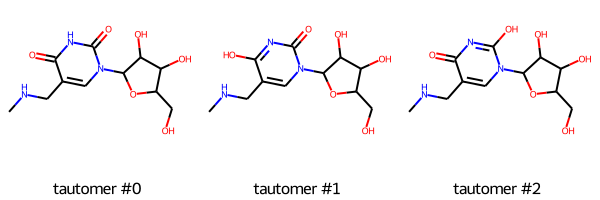

Tautomers

Tautomers SMILES
CNCc1c(=O)[nH]c(=O)n(C2C(O)C(O)C(CO)O2)c1 tautomer #0
CNCc1c(O)nc(=O)n(C2C(O)C(O)C(CO)O2)c1 tautomer #1
CNCc1c(=O)nc(O)n(C2C(O)C(O)C(CO)O2)c1 tautomer #2
Tautomer image Show Image

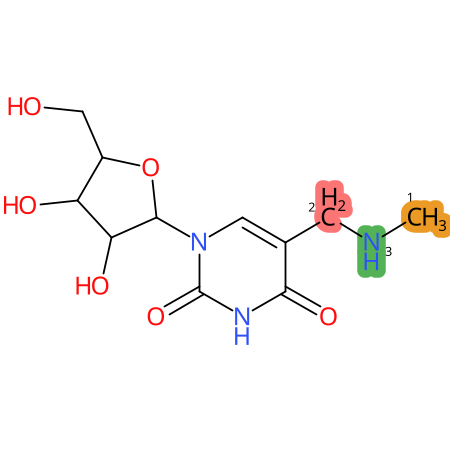

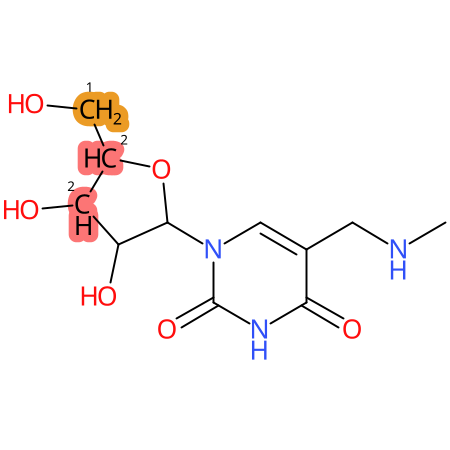

Predicted CYP Metabolic Sites

CYP3A4 CYP2D6 CYP2C9
mnm5U mnm5U mnm5U

* CYP Metabolic sites predicted with SMARTCyp. SMARTCyp is a method for prediction of which sites in a molecule that are most liable to metabolism by Cytochrome P450. It has been shown to be applicable to metabolism by the isoforms 1A2, 2A6, 2B6, 2C8, 2C19, 2E1, and 3A4 (CYP3A4), and specific models for the isoform 2C9 (CYP2C9) and isoform 2D6 (CYP2D6). CYP3A4, CYP2D6, and CYP2C9 are the three of the most important enzymes in drug metabolism since they are involved in the metabolism of more than half of the drugs used today. The three top-ranked atoms are highlighted. See: SmartCYP and SmartCYP - background; Patrik Rydberg, David E. Gloriam, Lars Olsen, The SMARTCyp cytochrome P450 metabolism prediction server, Bioinformatics, Volume 26, Issue 23, 1 December 2010, Pages 2988–2989 (link)


LC-MS Information

Monoisotopic mass287.1117
Average mass287.269
[M+H]+288.1195
Product ions156/239/257/125/209
Normalized LC elution time * not available
LC elution order/characteristics not available

* normalized to guanosine (G), measured with a RP C-18 column with acetonitrile/ammonium acetate as mobile phase.

Chemical groups contained

TypeSubtype
methyl groupmethyl at aromatic C
othersecondary amine

Reactions producing 5-methylaminomethyluridine

Name
nm5U:mnm5U

Reactions starting from 5-methylaminomethyluridine

Name
mnm5U:mnm5s2U

Last modification of this entry: Sept. 22, 2023
