Frequently Asked Questions


Table of Contents


1. General Questions


1.1 What is ModeRNA?

ModeRNA is a program for 3D modeling of RNA structures. It uses a homology modeling approach, taking an alignment and a template structure as an input. It contains many functions supporting analysis and manipulation of many nucleic acid structures.


1.2 How to cite ModeRNA?

ModeRNA: a tool for comparative modeling of RNA 3D structure. Rother M, Rother K, Puton T, Bujnicki JM. Nucleic Acids Res. 2011 Feb 7. [Epub ahead of print]


1.3 How much does it cost?

ModeRNA is free of charge for academic and commercial users. The code is published under the conditions of the Python License.


1.4 What system does ModeRNA work on?

ModeRNA has been tested on both Linux and Windows successfully. Both require Python and a couple of libraries to be installed. Some extra functions, like the model optimization with MMTK will not run on Windows computers. We have not tested whether ModeRNA runs on a Mac, sorry.


1.5 How long does it take to build a model?

Preparation of the input sequence alignment and template structure involves manual work and can be time consuming. For complicated cases, an input script needs to be written (or copied from this page). Once everything is prepared, the modeling of a tRNA-sized structure takes about half a minute. If the sequence alignments and templates are prepared, ModeRNA can automatically produce 10,000 tRNA models over a weekend on an average PC.


1.6 What language is ModeRNA written in?

The code behind ModeRNA is 100% Python. It uses BioPython, NumPy, and PyCogent for particular tasks.


1.7 How to get help with the program?

First, try to read the Tutorial. If you need help with the command-line interface, try:

python moderna.py -h
A full description of ModeRNA commands is in the Command Reference. If this does not solve your problem, please contact the developers at mmusiel@genesilico.pl.


1.8 What command-line options are available

ModeRNA has a straightforward command-line interface. To use it you need to open a console and enter a command according to this pattern:
python moderna.py <option1> <argument1> <option2> <argument2> ...

Available options:

optionargumentnamecomments
-hnonehelpPrints available options.
-a.fasta filealignmentReads an alignment from the given fasta file.
-t.pdb filetemplateReads a template structure from the given file.
-e-examineChecks the template for irregularities.
-l-cleanRemoves irregularities (water, ions, amino acids, nonstandard atom names) from a PDB structure.
-cchain identifierchain IDSpecifies the chain read from the structure given by -s or -t (default is A).
-o.pdb fileWrites the model structure to the given file (by default ModeRNA.out.pdb).
-s.pdb filestructureReads the structure in the given file for adding modifications.
-mabbreviationmodificationAdds a nucleotide modification (abbreviated like m2G, mnm5U, Y)
-presidue numberpositionPosition at which a modification is to be added.


1.9 How to use ModeRNA commands interactively?

ModeRNA can be used from the Python interactive shell (similar to BioPython). Just open a console and type python. You should see a prompt (>>>). Activate ModeRNA by typing:

>>> from moderna import *
Then you can use ModeRNA commands. Please make sure that you installed ModeRNA properly (see the Installation section).


1.10 How to write an input script?

An input script is a normal text file containing ModeRNA commands, executed by the Python interpreter. The first command always needs to be the following:

from moderna import *
To execute any script with ModeRNA, type from a Linux or Windows console:
python <my_script>
On Windows, you need the proper path settings, so that the system finds the Python.exe file.


2. Building Models with ModeRNA


2.1 What do I need for automatic modeling?

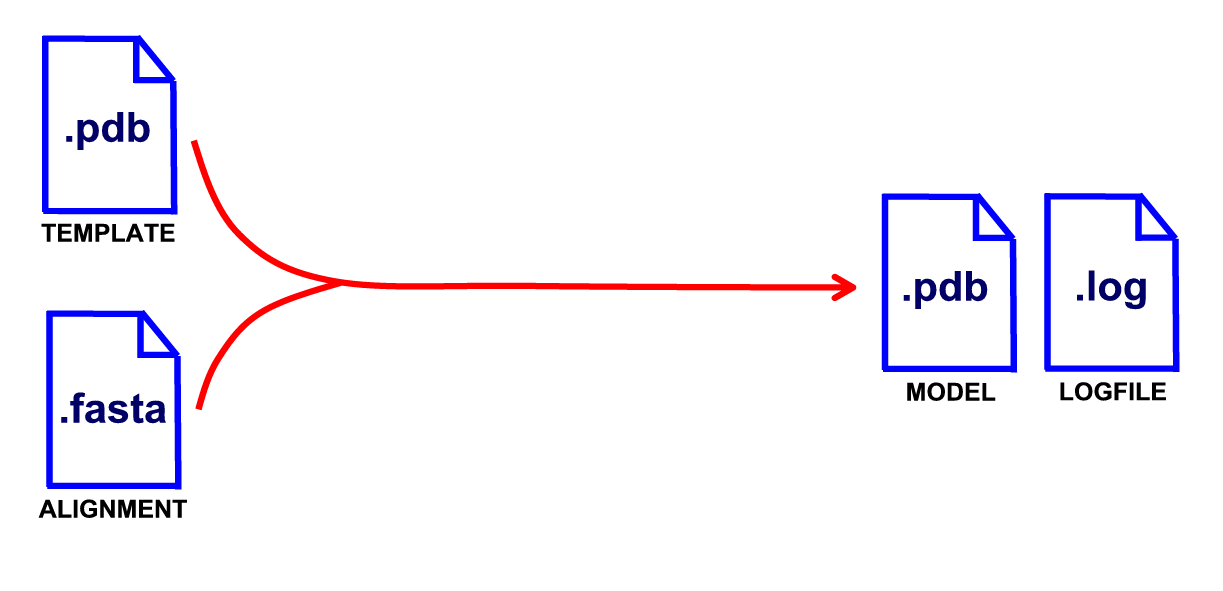

For building an RNA model automatically, you need a template structure and an alignment file. The template should cover all sections of the target sequence, leaving no gaps larger than 15 bases in the alignment.

[ example template structure ]
[ example alignment ]

Caution: Casual modelers must be warned that for large RNA molecules with complex structures, the development of a good alignment may require laborious manual preparation of the input data based on previous expertise of the respective RNA family.


2.2 How to prepare the template structure?

Atoms in the RNA backbone and ribose units need to comply to the remediated standard names: P, OP1, OP2, C1', C2', O2', C3', etc.. The atoms need to be complete. In the bases, at least the N1 or N9 atom (the first after the glycosidic bond) must be present. It does not matter, how modified nucleotides are named, or whether they are HETATM or ATOM records. Any remediated PDB file complies with these requirements. See the according section in Concepts for details.


2.3 How to prepare the alignment?

For producing reasonable models, the second sequence in the alignment needs to be identical to the one in the template structure. This example shows how to get the sequence from a given template structure in order to insert it to an alignment.

# write the template sequence to screen
t = load_template('1QF6_B_tRNA.pdb','B')
print get_sequence(t)

# check whether template and alignment have the same sequence
a = load_alignment('aln_1QF6_E_coli_1C0A.fasta')
print match_template_with_alignment(t,a)
An alignment should be a FASTA file, containing the target sequence in the first, and the template sequence in the second.
> target sequence
GDCGGD--DAGAAUACCUGCCUQUCACGCAGGG-----CGGGTPCGAGU
> template sequence
GDCGGDCUDAGAAUA----CCUQUCACGCA--GG7UCGCGGGTPCGAGU
To have ModeRNA handle gaps automatically, they may not be closer than two bases to each other. In the example, for the first two gaps a linker will be inserted, but not for the second two.


2.4 How to build a model from a template and alignment?

With a prepared template structure and alignment file, a model can be created from the Python shell with a few commands:

t = load_template('1QF6_B_tRNA.pdb', 'B')
a = load_alignment('aln_1QF6_E_coli_1C0A.fasta')
m = create_model(t,a)
m.write_pdb_file('my_model.pdb')


2.5 How to write a model to a PDB file?

Every model can be written as a PDB file. The residues are saved in the order of their respective numbers.

write_model(m)
write_model(m, 'output.pdb')
write_model(m, 'output.pdb', 'log.txt')


2.6 Can I build models with multiple chains?

At present, ModeRNA does not handle more than one chain in the same model. It is nevertheless possible to merge residues from two chains to one model. The model will then contain two regions with different numbers, and the delimiter between the chains can be seen in the sequence as a '_' symbol. See 7.4 and 7.5 for details.


2.7 Can I build models from multiple templates?

ModeRNA can combine multiple templates to build one model. In such scenarios, one template serves as the 'core' structure, and other templates are attached to it. The attachment is done by defining one or two linker residues (one, when attaching to the 5' or 3' end, two when attaching the second template within the core.
After combining two templates, the backbone may be interrupted, and thus the fix_backbone() function should be used afterwards. See 2.8, 7.4, and 7.5 for details.


2.8 How to fix breaks in the backbone?

Both template structures from the PDB and models built with ModeRNA sometimes contain chemically unreasonable interatomic distances along the backbone. These can be recognized and fixed by the fix_backbone() function.

m = load_model('broken_bb.pdb','A')
print m.get_sequence()

# check and fix the entire model
fix_backbone(m)
print m.get_sequence()

# check and fix the connection between residues 4 and 5
fix_backbone(m, '4', '5')
It is possible to fix connections between two residues explicitly. This can be important when a model contains a regular break (e.g. between the two strands of a double helix), where ModeRNA by default attempts to connect the residues on both sides of the break. [ download example structure ]


3. Modified Nucleotides


3.1 How to add a single modification?

If a model exists, but a single modification needs to be introduced, this can be achieved from the command line by:

moderna.py -s my_structure -m m2G -p 63
to introduce a 2-methyl-guanosine in position 63.
From a script, the same operation looks like:
# add a 2-methyl-Guanosine in position 63.
m  = load_model('1QF6_B_tRNA.pdb', 'B')
add_modification(m['63'], 'm2G')


3.2 Which modifications are present in my structure?

Given a template or a model, it is possible to find all modifications in a structure by:

# find modifications in any structure file
t = load_template('1QF6_B_tRNA.pdb', 'B')
print find_modifications(t)
As a result you get a Python dictionary with residue identifiers as keys and residues as values e.g. {‘620’: <Residue UNK het=H_UNK resseq=620 icode= >,
‘634’: <Residue Q het=H_Q resseq=634 icode= >}


3.3 How to remove modified nucleotides?

If neccesary, all modifications can be removed from a structure by:

remove_all_modifications(m)


3.4 How to obtain a full list of modified nucleotides?

A full list of nucleotides, and their abbreviations can be found in the MODOMICS database. With the exception of very few recently added entries, all of them are available from within ModeRNA.


4. Loop/Indel Modeling


4.1 How to insert a single loop?

The LIR loop library of ModeRNA can be searched for suitable linkers between two nucleotides. An internal scoring is done to select the best suitable candidate. To find the best fitting fragment and add it to your model, you need to use:

# prepare a model
t = load_template('1QF6_B_tRNA.pdb', 'B')
m = create_model()
copy_some_residues(t['31':'35']+t['38':'42'],m)

# Find the best fitting fragment for the missing two
apply_indel(m, '35', '38', Sequence('CA'))
For the numbering of the inserted residues, the number of the residue at the 5’ end is used, with consecutive letters A,B,C.. attached. (In this example 35A and 35B).


4.2 How can I select manually from several loop candidates?

If the result of the automatic loop insertion is not satisfactory, you can find a set of loop candidates to PDB files in a given directory and inspect them manually (by default 20):

MISSING EXAMPLE: write_loop_candidates

To insert e.g. the 3rd candidate, use:
# the index starts counting at zero.
insert_fragment(m, candidates[2])


4.3 How to add my own structural fragment in a certain place?

You can also close gaps in the model by adding custom pieces of structure. To do so, you need to provide a PDB file with the fragment plus one extra residue on each side, which is used for superimposition with the model. E.g. for adding a fragment two residues long, the file should contain four residues [example file]:

t = load_template('1QF6_B_tRNA.pdb', 'B')
m = create_model()
copy_some_residues(t['31':'35']+t['38':'42'],m)

# inserts the fragment between the indicated residues.
f = create_fragment('my_fragment.pdb', m['35'], m['38'], 'B')
insert_fragment(m,f)
‘my_fragment.pdb’ indicates the name of a file with a fragment, m[‘35’] and m[‘38’] indicate residues from model between which the fragment will be inserted, and finally ‘B’ indicates the chain identifier from the fragment file.


4.4 How does the search for loop candidates work?

The loop search procedure in ModeRNA tries to find the best fitting loop from a library of 88000 RNA fragments. The search is done in two steps: A fast one based on geometrical parameters, and a slower one based on the exact fit of a smaller set of loop candidatas. In the first step, the similarity of seven parameters derived from the residues at both ends of the fragment is compared to the same parameters of the residues in the model, between which a linker is to be found. These parameters involve three distances, two angles, and three dihedrals (two of which enforce a proper orientation of the bases). Additionally, the sequence similarity of the linker and the desired fragment is taken into account. A description of this approach can be found in (Michalsky E, Goede A, Preissner R. Loops In Proteins (LIP)–a comprehensive loop database for homology modelling. Protein Eng. 2003 Dec;16(12):979-85.).

In the second step, the 20 candidate loops that are most similar according to these criteria are inserted into the model, superimposing the P,O5',C5' atoms of the terminal residues at the 5' end, and C4',C3',O3' at the 3' end. A combined score is calculated, using the RMSD of the superposition, the number of inter-residue clashes, the number of hydrogen bonds formed by the loop, and the score used in the first step. The best ranking candidate is then inserted, replacing the two terminal residues from the model by the loop candidates'. When building models automatically, ModeRNA eliminates one extra residue on each side of a gap to be inserted, to give room for a reasonable loop closure.


5. Analyzing Structures


5.1 How to analyze the geometry of a structure?

Apart from modeling tasks, ModeRNA is capable of checking whether bond lengths, bond angles, and torsion angles are in a valid range. To measure the geometry of a given file, do:

t = load_template('1QF6_B_tRNA.pdb', 'B')
analyze_geometry(t)
A report about unusual geometric parameters will be written to the moderna.log file. The allowed range for bond lengths and angles was determined by running statistics on a the RNADB2005 set of structures. Torsion angles for the RNA backbone were taken from (Murray, Richardson et al. 2008). The torsion angles of the ribose were measured, and for the χ angle every value is considered valid.


5.2 How to check for interatomic clashes?

With ModeRNA the user can check whether model contains interatomic clashes. The list of clashing residue pairs can be obtained:

t = load_template('1QF6_B_tRNA.pdb', 'B')
m = create_model()
copy_some_residues(t['31':'35']+t['38':'42'],m)
candidates = find_fragment(m, '35', '38', Sequence('CAG'), 20)
insert_fragment(m, candidates[19])
find_clashes(m)


6. Refinement


6.1 What programs can refine RNA models?

Once ModeRNA has produced a model, it is often necessary to refine the local geometry. MMTK is a program library that performs energy minimization using Conjugate Gradient and others. It uses the AMBER force field. Alternatively, it is also possible to use a different Molecular Dynamics program like NAMD, or forcefield like Charmm. Some commercial packages like HyperChem are also capable of performing energy minimization of RNA.


6.2 How to refine some parts of a model?

The script refine_model_mmtk.py allows to improve sections of the model using MMTK (it should on $PATH environment variable after installation). It prepares the structure for input (basically exchanging some residue and atom names) and starts a run of energy minimization. For a given part, the first and last residues will be fixed by applying strong distance, angle and torsion restraints. This way, it is made sure that the optimized part fits into the rest of the model.

Example:

refine_model_mmtk.py -m 1QF6_B_tRNA.pdb -c B -r 50-55 -y 1000\
 -o optmized.pdb

Please take note that the script retains modifications in the model, but that they do not take part in the refinement process.


6.3 How to refine an entire model?

It is also possible to optimize an entire model structure with the refine_model_mmtk.py script. This may be necessary, e.g. to resolve conflicts between different parts of the chain. Optimization takes considerably longer than for a single fragment (several hours for a tRNA-sized structure).

Example:

refine_model_mmtk.py -m 1QF6_B_tRNA.pdb -c B -y 1000 -o optmized.pdb

Please take note that the script retains modifications in the model, but that they do not take part in the refinement process.


6.4 How to refine modifications

Modified nucleotides are not part of the standard AMBER forcefield. They are therefore excluded from the refinement by the MMTK script. A set of quantum mechanical parameters for 111 modified nucleotides has been published by (Aduri R et al. J Chem Theory Comput, 2007, 3(4), 1464–1475). They can be included in the AMBER parameter files to allow modifications to be refined in the same way.


7. Advanced use of ModeRNA


7.1 Can ModeRNA also model DNA?

Yes, this is possible in exactly the same way. In the sequence alignment, DNA is marked by lowercase letters.

> target sequence: DNA
aaagggcccttt
> template sequence: homologous RNA
AAAGGGCCCUUU


7.2 How to combine pieces of structure?

Almost any structural fragments can be combined together using ModeRNA. As an example, 3 small pieces of structures (11, 12 and 11-residues long) are connected into one structure. The fragment in the middle is loaded as a model (m), then the fragment which will be added at 5’ end is loaded as a fragment (f1), the same for the fragment which will be added at 3’ end (f2). Finally, the fragments are added:

t = load_template('1QF6_B_tRNA.pdb', 'B')
m = create_model()
copy_some_residues(t['31':'35']+t['38':'42'],m)

# inserts the fragment between the indicated residues.
f = create_fragment('my_fragment.pdb', m['35'], m['38'], 'B')
insert_fragment(m,f)


7.3 Can I write Python programs using ModeRNA?

Yes, all ModeRNA input scripts are essentially Python programs. Thus, it is straightforward to write Python-ModeRNA hybrid code.

from moderna import *
m = load_model('1QF6_B_tRNA.pdb','B')
for resi in m:
    if resi.modified:
        print 'Modified base:',resi
This will loop through all residues of a model, and print all modified bases.


7.4 How to merge two chains into one?

Two chains can be merged by copying the residues and adjusting the numbers:

# building a model composed of two strands
strand_a = load_template('dr0005H.pdb', 'A')
strand_b = load_template('dr0005H.pdb', 'B')

m = create_model()
copy_some_residues(strand_a['3':'21'],m)
renumber_chain(strand_b,101)
copy_some_residues(strand_b['101':'111'],m)
See the next example if you want to superimpose the ends of the second chain to an existing residue.
[ download example structure ]


7.5 How to combine two template structures?

Multiple templates can be combined by the same mechanism used in modeling linkers. A template is loaded as a fragment, and attached by either one or two residues to the existing structural core. Then, eventual discontinuities in the backbone are detected and fixed automatically:

# load the template for the structural core
m = load_model('1C0A.pdb', 'B')

# add a second template that is attached to the core.
f = create_fragment('hairpin_14nt.pdb', m['631'], m['639'], 'R')
insert_fragment(m,f)
fix_backbone(m)
The location for merging two templates has to be chosen with care, because the relative orientation of both templates depends on the choice of residues for linking. It is most practical to use two residues in a canonical base pair for linking.
[ download example structure ] [ download extension ]


8. Tips & Tricks


8.1 How to extract one chain from a structure?

When ModeRNA loads a template structure, it only considers one of the chains (A by default) - everything else is discarded. This function can be used to store nucleic acid chains in separate files for convenience:

m = load_model('1QF6_B_tRNA.pdb', 'B')
write_model(m, 'result.pdb')


8.2 How to copy a part of a template?

An arbitrary fragment of structure can be copied from a template to the model by:

from moderna import *
t = load_template('1QF6_B_tRNA.pdb', 'B')
m = create_model()
copy_some_residues(t['1':'15'],m)
This will copy three residues (631, 632 ans 633) from the template to the model.


8.3 How to copy a single residue?

It is also possible to copy only one residue in a similar way:

from moderna import *
t = load_template('1QF6_B_tRNA.pdb', 'B')
m = create_model()
copy_single_residue(t['37'], m)


8.4 How to exchange bases?

Standard bases can be exchanged by:

from moderna import *
t = load_template('1QF6_B_tRNA.pdb', 'B')
m = create_model()
copy_single_residue(t['37'], m)
exchange_single_base(t['36'], 'C', m)


8.5 How to clean up a template structure?

A template (or any PDB structure) can be analyzed for irregularities and be cleaned up by:

# cleaning up a loaded template:
# removes water, ions, amino acids, and unknown residues
# replaces O1P and O2P in atom names by OP1 and OP2
# replaces * in atom names by '
clean_structure(t)


Valid HTML 4.01!
